Sound Insulation Wall Acoustic Board Room Soundproofing Microperforated Building Material

Wall Panels Timber Micro Perforated Sound Absorption Board

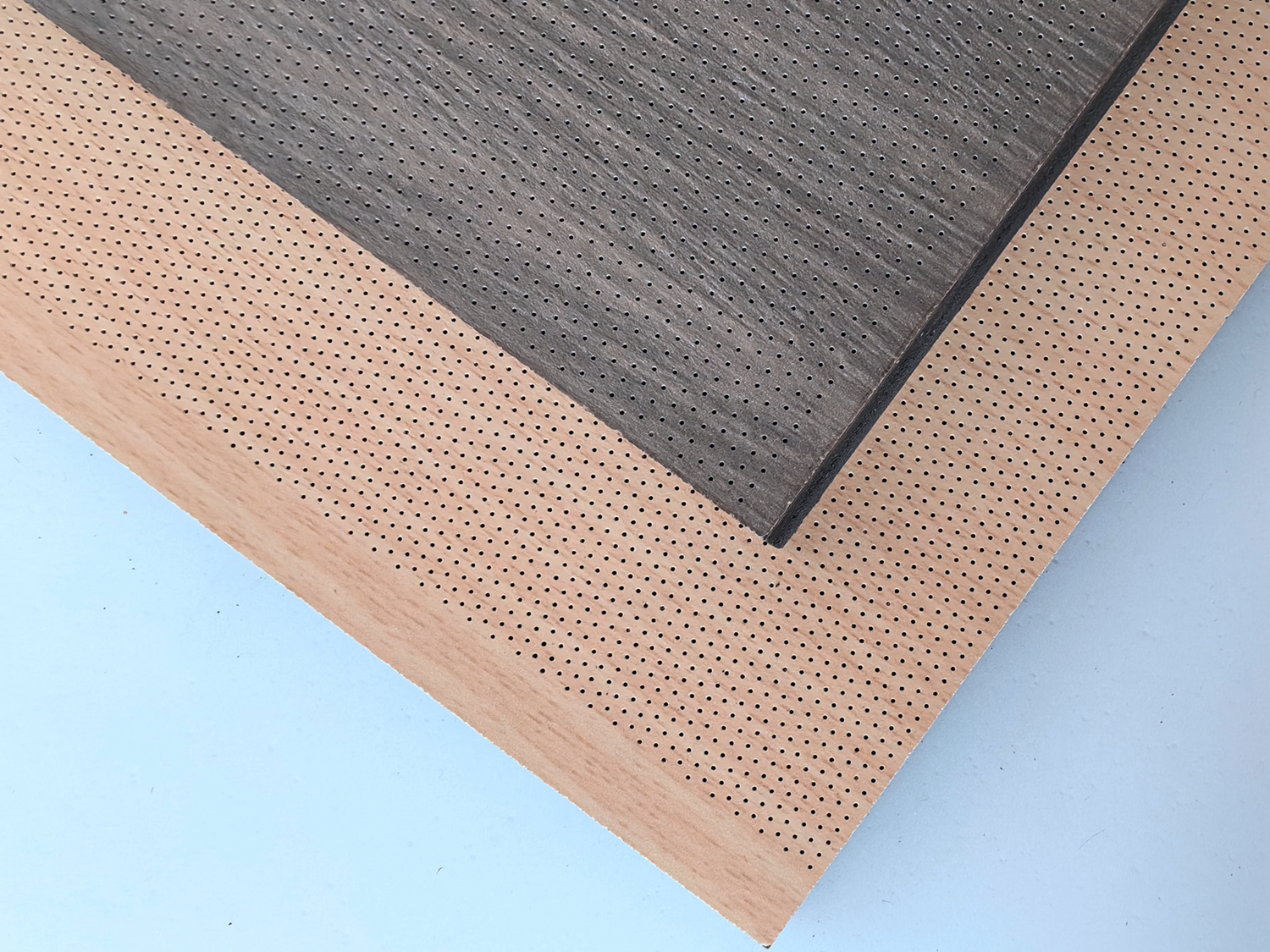

Micro perforated acoustic panel with high sound absorption without it being visible !

Micro is suitable for almost all surfaces, but not for outdoor applications .

Our wooden micro perforated acoustic panel is made up of a series of perforations .
Each panel has a machined groove joint for either a seamless or gap joinery .

Micro perforated come in 3 standard patterns :

① 1.8/1.8/0.5mm ② 2/2/0.5mm ③ 3/3/0.5mm

Advantage of micro perforated acoustic panel :

• The absolutely top product in our range

• ideal for all materials and surfaces

• Almost invisible acoustic material with high absorption

• Very aesthetic and functional

• Up to 600'000 holes every m² possible

• Mildew and termite resistant

Hole Option :

Edge Option :

Sound absorption data (2/2/0.5mm) :

NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

Indoor air quality :

Eco-Friendly Test = E1 with reference to EN 717-1:2004 , analysis was performed by UV-Vis .

TVOC Test :

With reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fireproof performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

Finish Option :

Chosen from Formica or Lamitak or customized laminate finish

Commerical job reference :

For more information, please feel free to contact us .

Room Soundproofing Micro Perforated Building Material

Sound Insulation Wall Acoustic Board

Ceiling Micro Perforated Acoustic Panel

Sound Insulation Wall Acoustic Board Room Soundproofing Microperforated Building Material Images
